INDIA'S FIRST MULTI WIRE SAW

Pride 41 & Pride 76

As the name says, this machine is the pride of KMT and the result of all the hard work and experience gained after decades in this industry. Isosceles triangular wire geometry with just five transmissions (drums/pulleys). All the drums, including the wire stretching pulleys, have a diameter of 1000 mm & are casted with a very high quality of aluminum. Designed to maximize the operator ergonomic comfort: Easy access to the machine with practical staircases and gangways. Fast and easy wire change and positioning. Immediate and intuitive operator interface of the touch screen for machine management. The wire stretching pulleys, one for each wire and rotating on bearings, are individually driven by a single hydraulic piston ensuring a uniform and constant tension of wire. The arc of movement of the wire stretching pulleys is very large therefore the wire installation is very easy. The rubber profiles are two-tone, which makes easy for the operator to install the wires. The Pride comes in two models named as Pride 41 & Pride 76.

FEATURES

Body

Body of some parts is Casted with very high quality of aluminium, same aluminium that is used in the aeroplanes. This provides rigidity and long life.

Geometry

Isosceles triangular wire geometry with just five transmissions (drums/pulleys).

Wire Installation and maintenance

Maintenance of the KMT pride 41 and 76 is pretty easy. Staircase and stands on the machine makes it easy to access the machine wihtout any trouble. It also makes it easy to change/install the wires and maintain the pulleys and hydraulic cylinders.

Rubber Profiles

Rubber profiles are in two colors which makes it easier to install the wires. Rubber profiles also has three grooves profile as well as one groove profile to ensure cutting of slabs in different thickeness. Material of the rubber profile is polyurethane, which is hard elastomer and has high Resistance to Water, Oil & Grease. Polyurethane is also flexible and provides tear, abrasion & impact Resistance.

Controller & Operator ergonomic

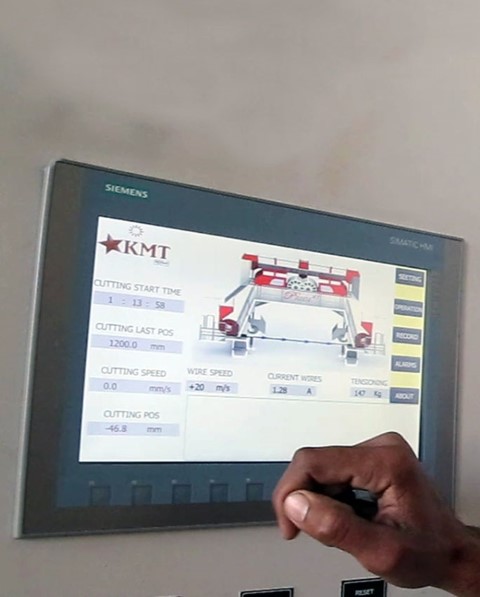

KMT Multi Wire Saw Pride procides a touch-screen controller (HMI) to controller the machine. It also diplays the stats of the machine. The controller lets the operator to programm the machine and set the parameters.

Dia of Drums : 1 meter
length of each wire : 20 meters
No. of wires : 41 or 76 (for Pride 41 and Pride 76, respectively)
Main Motor: 180 Hp
Total weight of the machine : 40 ton

SPECIFICATIONS

KMT MULTI WIRE SAW : PRIDE 41

KMT MULTIWIRE SAW MACHINE
TYPE		KMT PRIDE - 41
NUMBERS OF WIRES		41 Nos.
MAX CUTTING CAPACITY	LENGTH (mm)	3500
	WIDTH (mm)	1116
	HEIGHT (mm)	2100
MOTORS POWER	MAIN (HP)	110 KW
	UP/DOWN (HP)	10 HP
	TROLLEY (HP)	3 HP
	WATER PUMP	5X2 HP
	HYDRAULIC	5X2 HP
DIMENSIONS OF MACHINE (mm)	LENGTH (mm)	11000
	WIDTH (mm)	7000
	HEIGHT (mm)	7000
WEIGHT OF MACHINE		40,000 kg. (approx.)
The technical data (dimensions and weight) provided in the above table are not binding. We reserve the right to introduce and bring alterations without any prior notice to the customer.
