PRIDE 41 & PRIDE 76

India’s First Multi Wire Saw, KMT’S PRIDE 41 & PRIDE 76 each boasting unparalleled performance and reliability. Introducing the Pride Series – a testament to our unwavering commitment to excellence, forged through decades of industry expertise.

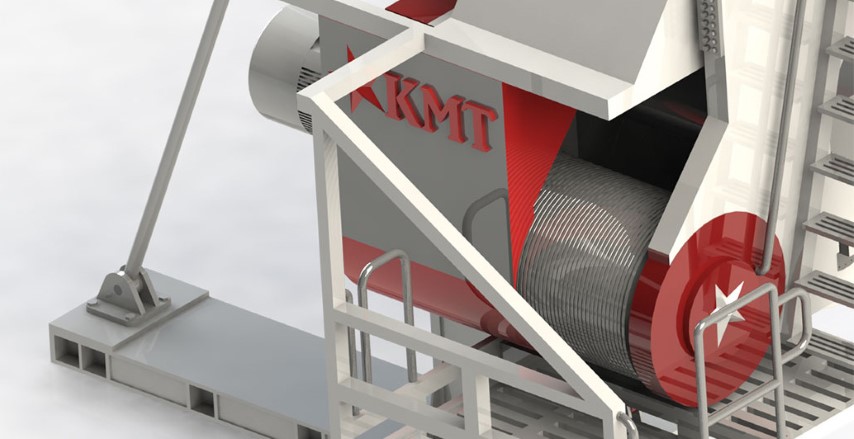

Crafted with meticulous attention to detail, these machines are the culmination of hard work and experience, representing the very essence of Pride in our craft. With an innovative isosceles triangular wire geometry and just five precision-engineered transmissions, the Pride Series sets a new standard for efficiency and performance. Each component, including the 1000mm diameter aluminum drums and wire stretching pulleys, is crafted with the highest quality materials, ensuring durability and reliability.

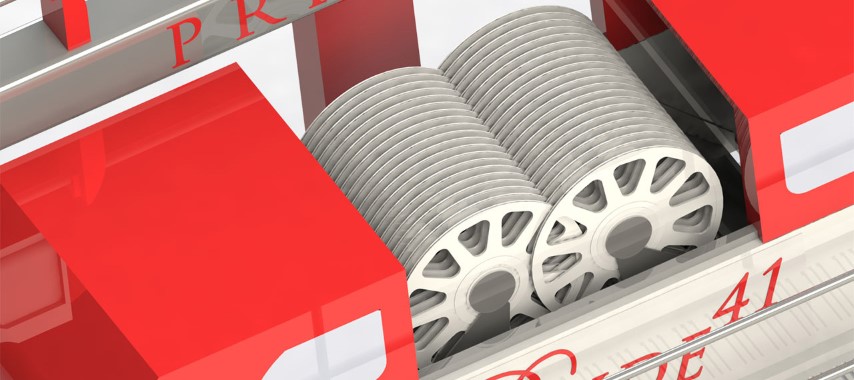

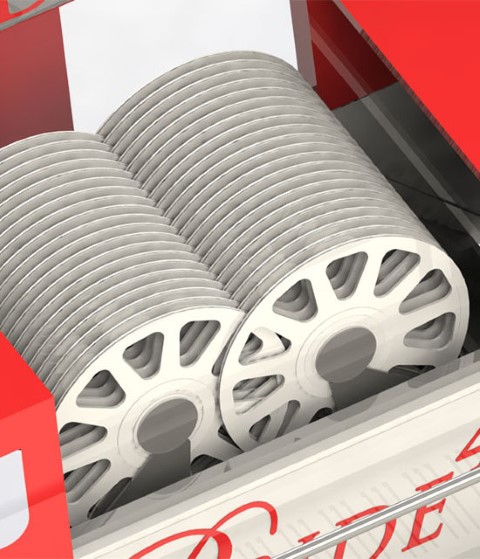

Designed with operator comfort in mind, the Pride Series offers easy access with practical staircases facilitating fast and effortless wire change and positioning. Experience uniform tension like never before with our hydraulic piston-driven wire stretching pulleys, ensuring consistent wire tension across every operation. Choose from two exceptional models – the Pride 41 and Pride 76 – each designed to triumph the stone industry.

Body : Our commitment to excellence shines through in every aspect, including the body of our machines, casted with the same high-quality aluminum utilized in aerospace engineering. This ensures not only rigidity but also a long lifespan, providing you with reliability that stands the test of time.

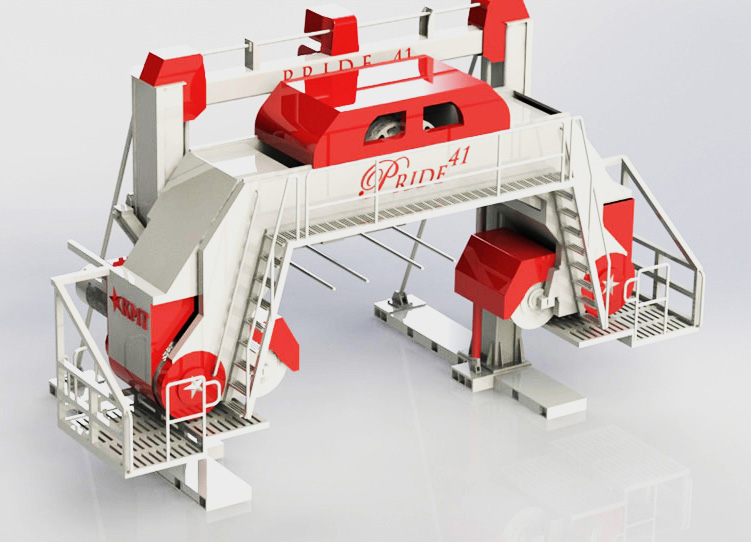

Geometry : An isosceles triangular wire geometry and a streamlined system with just five transmissions (drums/pulleys). This cutting-edge design maximizes efficiency and performance.



KEY FEATURES


Body of some parts is Casted with very high quality of aluminium, same aluminium that is used in the aeroplanes. This provides rigidity and long life.

Isosceles triangular wire geometry with just five transmissions (drums/pulleys).

Maintenance of the KMT pride 41 and 76 is pretty easy. Staircase and stands on the machine makes it easy to access the machine wihtout any trouble. It also makes it easy to change/install the wires and maintain the pulleys and hydraulic cylinders.

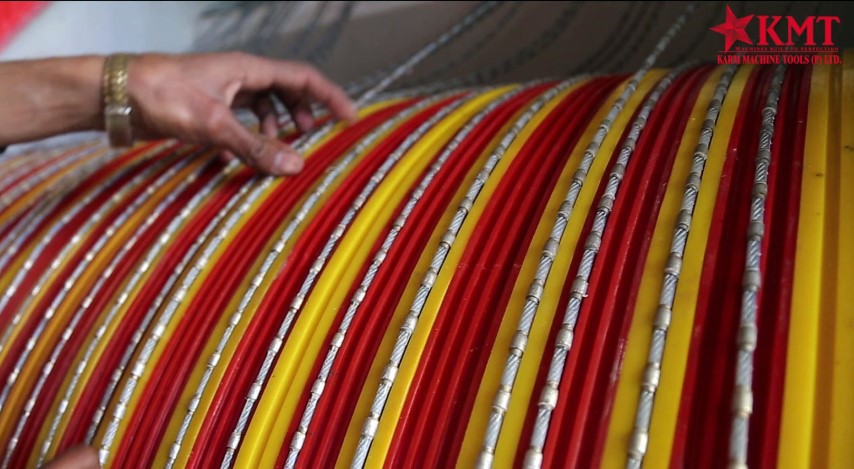

Rubber profiles are in two colors which makes it easier to install the wires. Rubber profiles also has three grooves profile as well as one groove profile to ensure cutting of slabs in different thickeness. Material of the rubber profile is polyurethane, which is hard elastomer and has high Resistance to Water, Oil & Grease. Polyurethane is also flexible and provides tear, abrasion & impact Resistance.

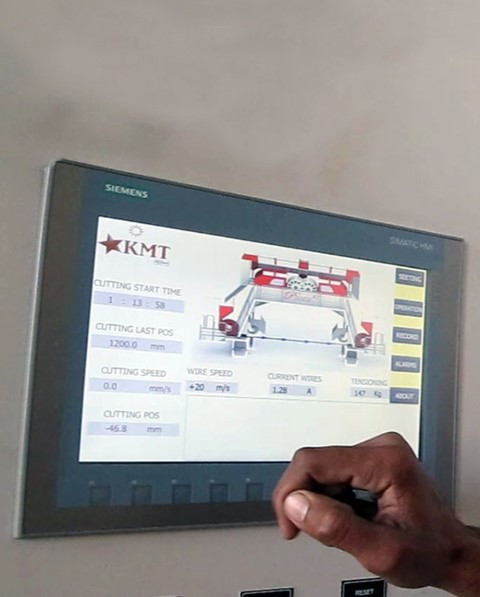

KMT Multi Wire Saw Pride procides a touch-screen controller (HMI) to controller the machine. It also diplays the stats of the machine. The controller lets the operator to programm the machine and set the parameters.

Dia of Drums : 1 meter length of each wire : 20 meters No. of wires : 41 or 76 (for Pride 41 and Pride 76, respectively) Main Motor: 180 Hp Total weight of the machine : 40 ton

SPECIFICATION


KMT MULTIWIRE SAW MACHINE

TYPE

KMT PRIDE - 41

NUMBERS OF WIRES

41 Nos.

MAX CUTTING

CAPACITY

LENGTH  (mm)

3500

WIDTH (mm)

1116

HEIGHT (mm)

2100

MOTORS

POWER

MAIN (HP)

110 KW

UP/DOWN (HP)

10 HP

TROLLEY (HP)

3 HP

WATER PUMP

5X2 HP

HYDRAULIC

5X2 HP

DIMENSIONS OF MACHINE (mm)

LENGTH  (mm)

11000

WIDTH (mm)

7000

HEIGHT (mm)

7000

WEIGHT OF MACHINE

40,000 kg. (approx.)

The technical data (dimensions and weight) provided in the above table are not binding. We reserve the right to introduce and bring alterations without any prior notice to the customer.
