NG 9 & NG 5

Introducing the pinnacle of multi-blade cutting technology: KMT NG-9, NG-5. Engineered to perfection by Karm Machine Tools, this revolutionary cutter is the epitome of efficiency, productivity, and cost-effectiveness.

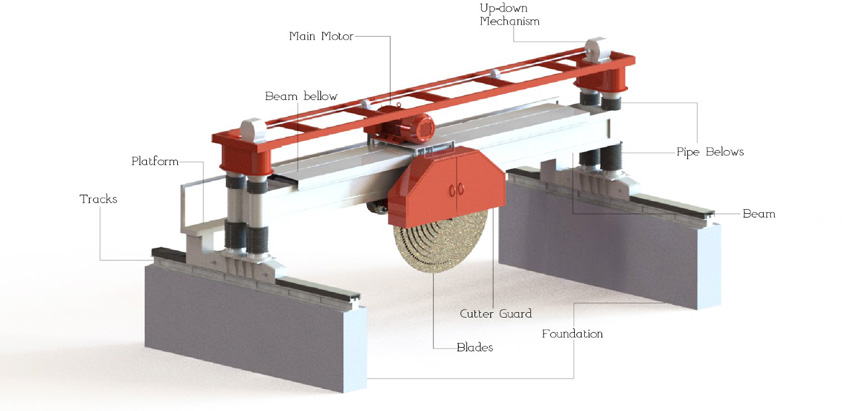

KEY FEATURES


Housing transmits the torque generated by the main motor to the blade assembly. It also changes the torque and speed depending on the loads on the blade assembly.

NG-9/2400 : 9 OR 10 Blades
Ng5/3000 : 5 Blades

This motor provides rotary motion to the Housing via a set of belts and pulleys.

The whole blade assembly is mounted on this box. It provides horizontals movement to the blade assembly.

Column assembly consisting of two chrome platted pipes on the each side (4 pipes in total). Column assembly provides vertical linear motion to the beam. Chrome plated columns also ensures the high-precision, high-rigidity, energy-saving, high-speed motion with long service life.

SPECIFICATION
NG-9/2400

TYPE

KMT NG-9/2400

NUMBER OF BLADES

9

USEFUL

CUTTING  SIZE

LENGTH  (mm)

3300

HEIGHT(mm)

1000

WIDTH (mm)

2000

MOTORS POWER

MAIN (HP)

75 HP 1400 RPM

BEAM (UP/DOWN)

5 HP 1440 RPM

HYDRAULIC

3 HP

BEAM LT

2 HP

LENGTH OF BEAM

8.5 (m)

CYCLE PER MINUTE

325

WEIGHT OF THE MACHINE

17000 kg. (Approx.)

DIMENSIONS OF TROLLEY

2100 X 3050

The technical data (dimensions and weight) provided in the above table are not binding.                          We reserve the right to introduce and bring alterations without any prior notice to the customer.


NG-5/3000

KMT MULTI BLOCK CUTTER

TYPE

KMT NG 5/3000

NUMBER OF BLADES

5

USEFUL

CUTTING  SIZE

LENGTH  (mm)

3300

HEIGHT(mm)

1300

WIDTH (mm)

2000

MOTORS POWER

MAIN (HP)

75 HP 1400 RPM

BEAM (UP/DOWN)

5 HP 1440 RPM

TO & FRO MOTION

5 HP

BEAM LT

2 HP

LENGTH OF BEAM

9.5 (m)

CYCLE PER MINUTE

325

WEIGHT OF THE MACHINE

19000 kg. (Approx.)

DIMENSIONS OF TROLLEY (mm)

2100 X 3050

The technical data (dimensions and weight) provided in the above table are not binding.                          We reserve the right to introduce and bring alterations without any prior notice to the customer.
